DC Electrical Battery Driven Air Conditioner
Author:Corun Date:2020/07/24
Battery Driven Air Conditioner
1. Introduction
This battery driven air conditioner its whole system is driven by 12V/24V vehicle original battery. 2 works 30minutes finished.
2. Application
Battery Driven Air Conditioner is applicable to various of engineering vehicle includes excavator, bulldozer, mining truck etc.
Outside view
Battery Driven Air Conditioner Data
Model |
T20B |
|
Installation |
Roof Top Mounted |
|
Cooling Capacity |
2.2~2.5KW/8500BTU |
|
Controller |
Digital/Manual |
|
Power |
Battery driven |
|
Voltage |
12V/24V |
|
Compressor |
Totally-enclosed, DC-powered,
Direct connection brushless motor |
|
Refrigerant |
R134a |
|
Refrigerant charge volume |
0.8~1.2Kg |
|
Air Flow Volume of Evaporator |
≧750m3/h |
|
Size |
L:856mm, W:744mm, H:220mm |
|
Totally Weight |
32 Kg |
|
Working current |
12V |
48A |
24V |
29A |
|
Recommended
alternator |
12V |
≧70A |
24V |
≧50A |
|
Recommended
Battery Volume |
12V |
≧220 AH |
24V |
≧220 AH |
Battery Driven Air Conditioner's Advantage
1. Installation easy, 2 workers 30minutes finished. Only three steps, 1. Open holes, 2. Fixed, 3. Connect wiring to vehicle battery.
2. No need install mechanical compressor.
3. Air conditioner is durable, suitable for various mine environments.

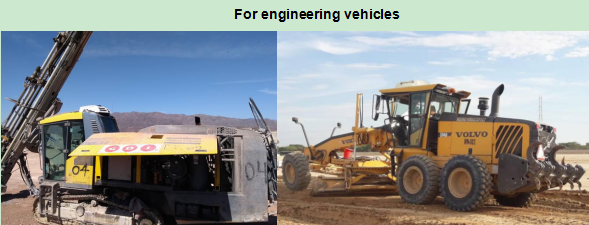

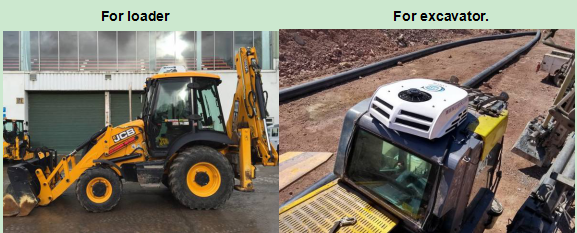

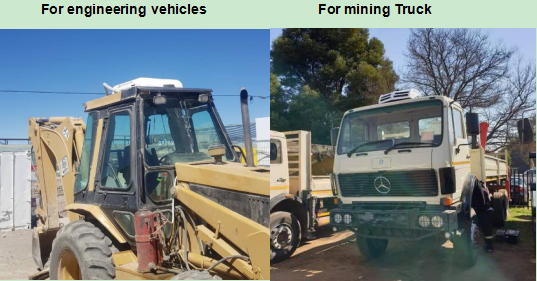

3. Battery Driven Air Conditioner Installation Cases in SA
More information, pls visit:
https://www.facebook.com/corunclima/
https://www.facebook.com/Transport-Refrigeration-UnitCorunTech-108235070649872/
Full Electric is Future, We are Already Here.
From 2006 years, we start design, manufacture, and export the Full Electric A/C units. We already own the key technology of the Full Electric A/C units for engineering vehicle.
4. Company Profile

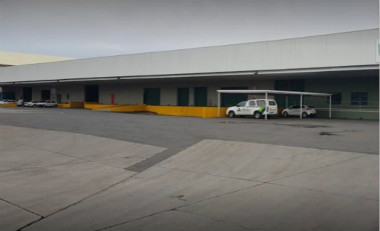

Our warehouse in Johannesburg, South Africa.
Address: 27 Monteer St, Isando, Kempton Park, 1600, South Africa.(FMC Logistics)
Contact Us:
Inquiry to:
Email: Info@corunclima.com
Whatsapp: +27 82 6983137
TAG:  Battery Driven Air Conditioner
