Features

1.Zero CO2 emissions. NO Noise. Green technology.

2.Easy installation. Integrated Condenser and Evaporator. No need install air duct. No need engine driven compressor.

3.Modular, roof mounted, light weight, suitable for most of Electric bus.

4.No need engine driven compressor. Save engine power.

5.Waterproof, dustproof, shockproof, increase the system’s reliability and lifespan of the electric components.

6.High advanced welding technology of pipe, after gas tightness testing, leakage is absolutely impossible.

7.Specified thick wire is low-resistance and anti-electro magnetic interference, can endure heavy current;

8.Imported famous brand electrical parts and high quality thick wire, which can prevent some circuit failure;

9.High quality cooper tube and aluminum fins for condenser, especially using hydrophilic foil for evaporator, higher heat exchange efficient;

10.Strict quality control system, CE, NRC and Emark laboratory testing report approved for our products.









Specifications

Model

AC180TE

Cooling Capacity

18.2KW/61,880BTU

Voltage

DC400V/DC720V are available.

Air Flow Volume of Evaporator

4000 m3/h (4pcs)

Compressor

DC400-DC720

Controller

DC12V/DC24V

Refrigerant

R134A

Installation

Monoblock all roof top mounted

Heating

PTC Heater

Applying

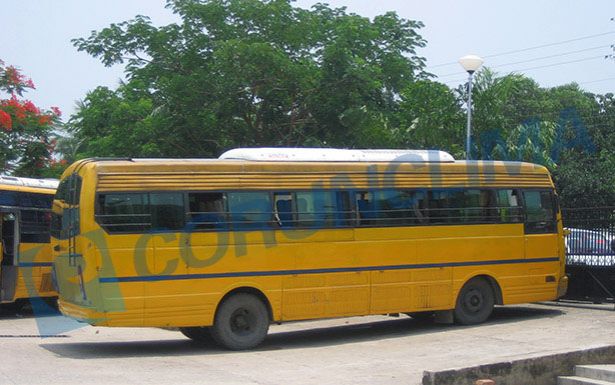

 6.8-8.2m Electric bus or Hybrid bus (19-32seats)

** We will keep rights of products, and changes without prior notice.  ** the Images are for reference only, subject to the actual product



Inquiry

If you have any questions, please contact us. We'll do our best to help.
