Transport refrigeration unit for truck and trailer is commonly used in cold chain logistics all around the world. No matter freezer or chiller, its cooling performance must be reliable during long transportation distance. With thorough understanding of such need, Corunclima recommends classical engine driven unit and brand new standby built-in unit for your choice. Covering all container volumes, one or a few in this series will satisfy your needs.

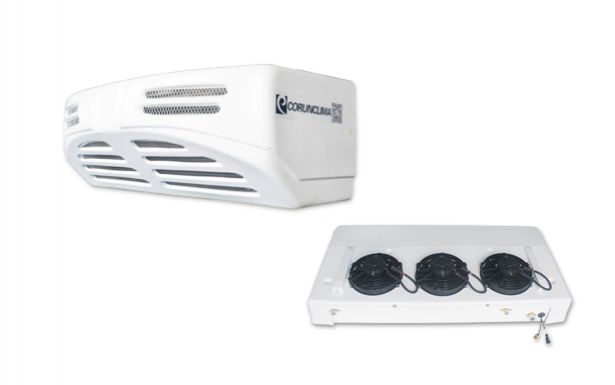

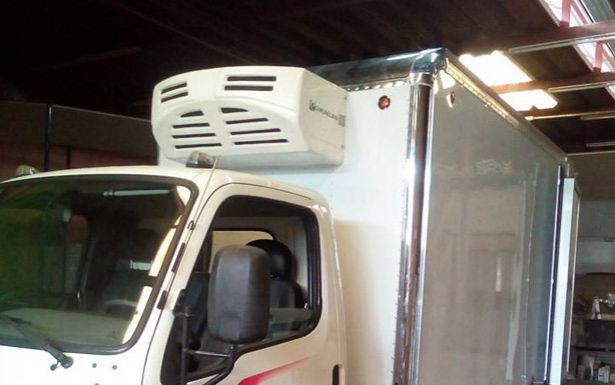

After interiorly and exteriorly whole new designed and upgrade, standby built-in transport refrigeration unit V450FE is the desirable and reliable freezer for light truck with container size of 12-14M³.
1. With standby added, the unit operates persistently without extra fuel cost and engine wear.
2. Optional DC 12V or 24V for your choice.
3. The whole transport refrigeration unit is lightweight and compacted while condenser front-mounted and evaporator installed based on your need.
4. This model series perfectly covers frozen volume ranges from 12M³ to 14M³ and accurately matches to its own frozen volume from every square meters.
5. Low cost, low maintenance, and low noise in operation will be witnessed in every model of Corunclima.
Model No. |
Freezer |
|
V450FE |
||
Driven |
Electrical Standby driven |
|
Temperature |
-20℃ |
|
Voltage |
DC12V/DC24V |
|
Cooling Capacity |
2610W (-20℃) |
|
Refrigerant Gas |
R404A |
|

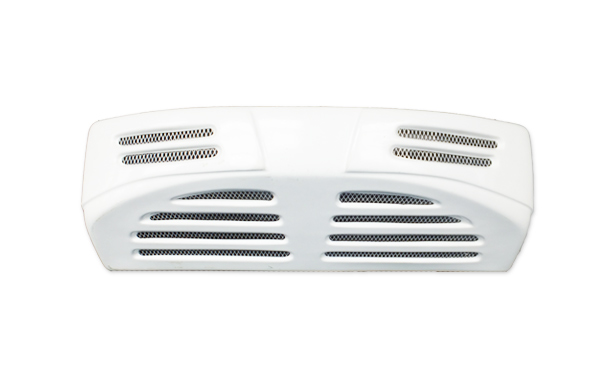

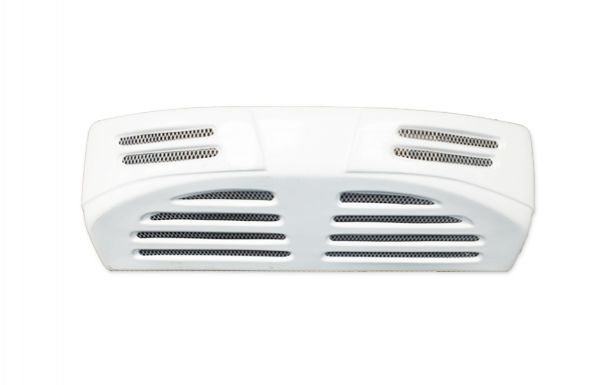

Condenser |
Size (MM) |
1550*560*440 |
Weight(KG) |
99 |
|
Fan Qty |
2 |
|

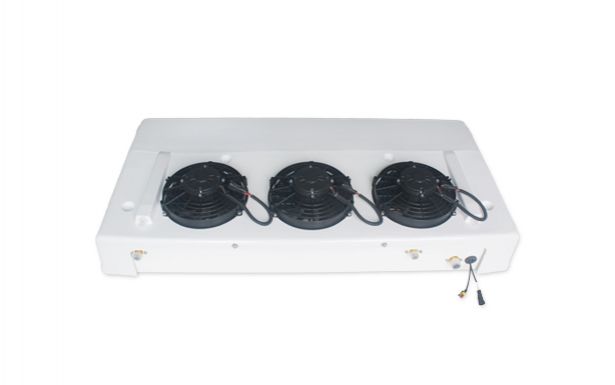

Evaporator |
Size (MM) |
1198*570*160 |
Weight(KG) |
28 |
|
Fan Qty |
3 |
|
Compressor |
SD7L15/UPF170 |
|
Controller |
Digital / in Cabin |
|
Defroster |
Included /Hot Gas |
Installation Kits (Hose, Drain Hose, wiring, Clamps etc included)
Ambient Temperature=48℃
