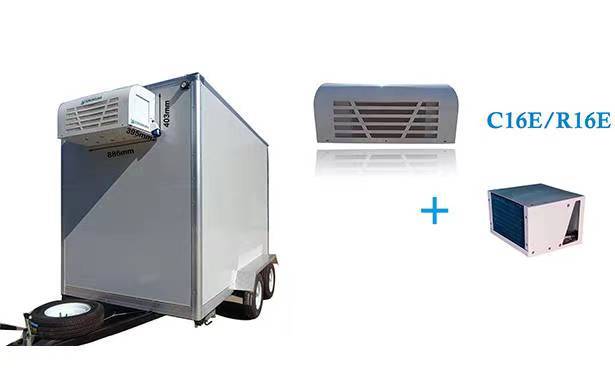

Corunclima Play&Plug trailer refrigeration units C16E/R16E are designed for mobile trailers with container size of 16m³ to 25m³, AC powered, able to be plug and play and easy to install.
These units have a fast and stable cooling capacity, allowing for temperature regulation on demand.
1. Optional AC110V /230V /380V voltage for your choice.
2. Easy installation. The plug-and-play design can also be powered by a generator, regardless of site constraints.
3. Stable cooling performance. Whether chilling or freezing, Corunclima's trailer refrigeration units are capable of fast, stable, temperature-controlled operation to meet your needs.
4. Wide application: Our trailer refrigeration units have a wide range of applications, including but not limited to food & beverage trucks at parks, campsites, fairs, festivals, and holiday resorts, family reunions, weddings, fruit and vegetable preservation, storage of fish and seafood, and etc.
Model No. |
C16E |
R16E |
|
Power Supply |
110V/230V/380V |
110V/230V/380V |
|
Temperature |
-5℃ |
-20℃ |
|
Max Operating Temperature |
40℃ |
40℃ |
|
Max volume trailer |
12 m³ |
12 m³ |
|
Cooling Capacity |
1600W (-5℃) |
1600W (-20℃) |
|
Power Consumption |
1760W |
1760W |
|
Refrigerant Gas |
R134A |
R404A |
|
Refrigeration Quantity |
1500 G |
1500 G |
|

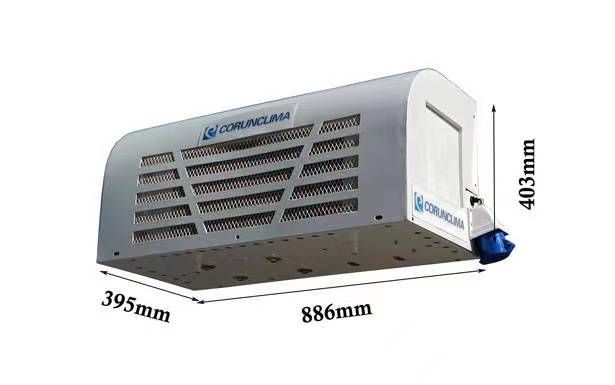

Condenser |
Size (MM) |
886*395*403 |
886*395*403 |
Weight(KG) |
10 |
10 |
|
Fan Qty |
1 |
1 |
|

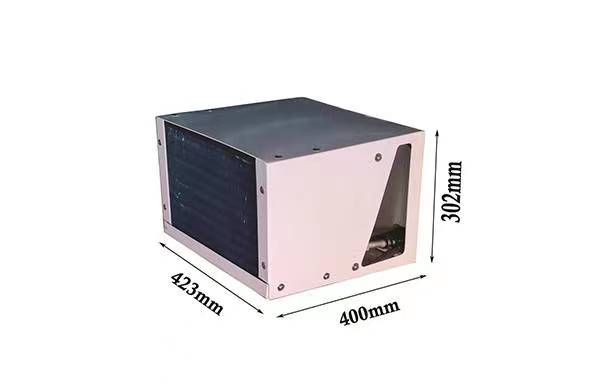

Evaporator |
Size (MM) |
423*400*302 |
423*400*302 |
Weight(KG) |
8 |
8 |
|
Fan Qty |
1 |
1 |
|
Condenser Air Flow |
750 m³/h |
750 m³/h |
|
Evaporator Air Flow |
850 m³/h |
850 m³/h |
|
Defroster |
Optional / Hot Gas |
Optional / Hot Gas |
|
Weight |
40 KG |
40 KG |
If you have any questions, please contact us. We'll do our best to help.
